Y100压力表系列：专业测量的可靠选择

Y100普通压力表是一种广泛应用于工业现场的压力测量仪表。它采用弹簧管作为测量元件，当被测介质的压力作用于弹簧管时，弹簧管会产生弹性变形，通过传动机构将变形量转换为指针的转动，从而在刻度盘上显示出压力值。该压力表结构简单、读数直观，适用于测量无爆炸危险、不结晶、不凝固以及对铜合金无腐蚀作用的液体、气体或蒸汽的压力。其测量范围广泛，可满足不同工业场景下的压力监测需求，为设备的安全运行提供可靠保障。

The Y100 general pressure gauge is a widely used pressure measuring instrument in industrial fields. It employs a bourdon tube as the measuring element. When the pressure of the measured medium acts on the bourdon tube, the tube undergoes elastic deformation. Through the transmission mechanism, the deformation is converted into the rotation of the pointer, which then displays the pressure value on the dial. This pressure gauge features a simple structure and intuitive readings. It is suitable for measuring liquids, gases, or vapors that are non-explosive, non-crystallizing, non-solidifying, and non-corrosive to copper alloys. With a wide measuring range, it can meet the pressure monitoring requirements in various industrial scenarios and provides reliable assurance for the safe operation of equipment.

Y100不锈钢耐震压力表专为应对复杂工业环境而设计。其外壳采用优质不锈钢材质，具有出色的耐腐蚀性和抗恶劣环境能力，能够有效抵御潮湿、盐雾等恶劣条件对仪表的侵蚀。内部结构经过特殊优化，具备良好的抗振性能，即使在振动频繁的设备或管道上也能保持稳定的测量精度。该压力表的测量元件同样基于弹簧管原理，能够准确测量液体、气体或蒸汽的压力。其耐震特性使其在化工、石油、机械制造等行业的高压、振动环境下表现出色，为设备的稳定运行和安全监测提供有力支持。

The Y100 stainless steel vibration-resistant pressure gauge is specifically designed to cope with complex industrial environments. Its housing is made of high-quality stainless steel, which offers excellent corrosion resistance and the ability to withstand harsh conditions such as humidity and salt spray. The internal structure has been specially optimized to provide good vibration resistance, ensuring stable measurement accuracy even when installed on equipment or pipelines with frequent vibrations. The measuring element of this pressure gauge, based on the bourdon tube principle, can accurately measure the pressure of liquids, gases, or vapors. Its vibration-resistant features make it perform outstandingly in high-pressure and vibrating environments in industries such as chemical, petroleum, and mechanical manufacturing, providing strong support for the stable operation and safe monitoring of equipment.

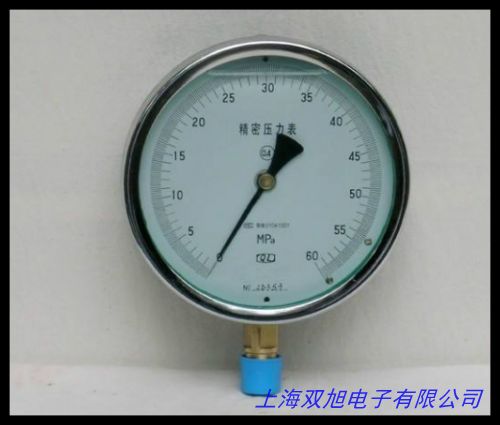

Y100真空精密隔膜压力表是一种高精度的压力测量仪表，特别适用于测量具有腐蚀性或高粘度的介质。它采用隔膜作为测量元件，隔膜将被测介质与测量系统隔离，有效防止介质对压力表内部零件的腐蚀和堵塞。隔膜的另一侧通过充填液将压力传递给弹簧管，进而实现压力测量。这种设计不仅提高了测量的精度和可靠性，还拓宽了压力表的应用范围，使其能够适应各种复杂的介质环境。其测量精度高，能够满足对压力测量精度要求较高的工业场合，如精细化工、制药、食品加工等行业，为生产过程的精确控制提供有力保障。

The Y100 vacuum precision diaphragm pressure gauge is a high-precision pressure measuring instrument, especially suitable for measuring media with corrosive or high viscosity properties. It uses a diaphragm as the measuring element. The diaphragm isolates the measured medium from the measuring system, effectively preventing corrosion and blockage of the internal parts of the pressure gauge by the medium. On the other side of the diaphragm, the pressure is transmitted to the bourdon tube through a filling fluid, thereby achieving pressure measurement. This design not only improves the accuracy and reliability of the measurement but also expands the application range of the pressure gauge, enabling it to adapt to various complex media environments. With high measurement accuracy, it can meet the requirements of industrial applications where high precision in pressure measurement is needed, such as in fine chemical, pharmaceutical, and food processing industries, providing strong support for the precise control of production processes.
