FMD-116Y 声光报警器产品介绍（中文版）

FMD-116Y声光报警器是一款专为工业环境设计的智能安全警示设备，通过高亮度光效与穿透性音频的协同作用，为各类作业场景提供高效警示解决方案。设备采用模块化结构设计，支持多场景快速部署，适用于仓储管理、生产线监控、电力系统预警及公共区域安全防护等多领域应用场景。

产品搭载复合型LED光源系统，可实现360°无死角视觉覆盖，提供红蓝双色动态闪烁模式，亮度达8000流明以上，确保在强光或低光照环境中均能清晰辨识。同步配置宽频声波发生器，支持110分贝可调音量输出，内置8种预置警报音调，涵盖间断式蜂鸣、持续警示音等多种模式，可根据现场需求通过拨码开关快速切换工作模式。

壳体采用高强度工程复合材料一体成型，具备IP65防护等级，可在-30℃至+70℃温度范围内稳定运行。顶部集成防尘透气膜结构，有效平衡内外气压的同时阻隔粉尘侵入。底部配置通用型卡扣支架，兼容35mm标准导轨安装与壁挂式固定，支持水平/垂直多角度调节。供电系统适配12-24V DC宽电压输入，内置过载保护与极性反接防护模块，降低安装失误导致的设备损坏风险。

本产品特别强化了环境适应性能，通过振动阻尼结构有效降低机械噪音干扰，内置温度补偿电路确保极端环境下光声参数稳定。适用于机械制造车间、物流转运中心、地下停车场及化工园区等复杂环境，为设备启停预警、区域禁入提示、紧急状态示警等场景提供可靠保障。通过优化功耗管理，设备在持续工作模式下能耗低于8W，符合现代工业节能环保需求。

FMD-116Y Alarm Beacon Product Introduction (English Version)

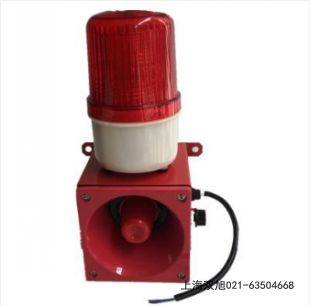

The FMD-116Y Alarm Beacon is an intelligent safety warning device engineered for industrial environments, delivering effective alert solutions through the integration of high-intensity visual signals and penetrating audible alarms. Featuring modular construction design, it enables rapid deployment across multiple operational scenarios, including warehouse management, production line monitoring, power system alerts, and public area security applications.

Equipped with a composite LED lighting system, the device provides 360-degree visual coverage with red/blue alternating flash modes, achieving over 8000 lumens brightness to ensure clear visibility under strong ambient light or low-light conditions. The integrated wide-frequency acoustic generator delivers adjustable 110dB output with 8 preset alarm tones, including intermittent buzzer and sustained warning modes, selectable via DIP switch configuration.

Constructed with high-strength engineering composite material, the housing attains IP65 protection rating and maintains stable operation within -30℃ to +70℃ temperature range. The top-mounted dustproof ventilation membrane balances internal pressure while blocking particulate ingress. The universal mounting bracket supports 35mm DIN rail installation and wall-mounting options with multi-angle adjustment capability. The power supply system accepts 12-24V DC input with built-in overload protection and reverse polarity safeguards to prevent installation-related damages.

Enhanced environmental adaptability is achieved through vibration damping structure that minimizes mechanical noise interference and temperature-compensated circuitry ensuring consistent performance under extreme conditions. Ideal for manufacturing plants, logistics hubs, underground parking facilities, and chemical processing zones, it provides reliable alerts for equipment status warnings, restricted area notifications, and emergency situations. With optimized power management, the device consumes less than 8W in continuous operation mode, aligning with modern industrial energy efficiency requirements.

The product emphasizes user-centric design principles, offering plug-and-play installation and maintenance-free operation. Customizable activation modes support both standalone operation and system integration via dry contact interfaces. Optional synchronization control enables multi-unit coordinated alert patterns for large-scale facility applications.
