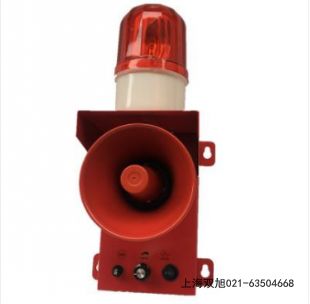

声光报警器DBJ-1Z
产品概述
DBJ-1Z声光报警器是一款专为工业环境设计的多功能安全警示设备，集声音警报和视觉警示于一体，适用于各类需要紧急警示的场合。该产品采用高强度铸铝合金外壳，表面经过喷塑处理，具有优异的防腐蚀和抗冲击性能。钢化玻璃灯罩设计不仅增强了防护能力，还提供红、黄、蓝等多种颜色选择，满足不同场景的视觉警示需求。产品支持钢管或电缆布线，安装方式灵活多样。16
功能特点
DBJ-1Z声光报警器采用集成电路设计，具有抗干扰能力强、工作稳定可靠等特点。其音量可达120分贝，确保在嘈杂环境中仍能有效传递警报信息。产品配备高亮度LED频闪灯，可视距离远，警示效果显著。报警器支持多种音调和语音内容选择，包括"设备启动请注意"、"火车来了请注意"等预设语音，也可根据客户需求定制特定语音内容。外壳防护等级达到IP56，能有效抵御粉尘和水汽侵入，适合在恶劣环境下长期使用。714
应用领域
该产品广泛应用于钢铁冶金、港口码头、起重机械、工程车辆等工业领域，特别适用于天车、推焦车、火车道口等需要安全警示的场所。在船舶、矿山、石油化工等特殊环境中，DBJ-1Z同样表现出色，能有效提醒作业人员注意安全。产品还可用于消防工程、周界防越系统等安防领域，为各类作业场所提供可靠的安全保障。422
Product Overview
The DBJ-1Z audible and visual alarm is a multifunctional safety warning device specifically designed for industrial environments. It combines audible alerts with visual signals to provide effective warning in various emergency situations. The product features a robust die-cast aluminum alloy housing with plastic coating, offering excellent corrosion resistance and impact protection. The tempered glass cover enhances durability while providing options of red, yellow, and blue colors to meet different visual warning requirements. Flexible installation is supported through both conduit and cable wiring methods.16
Key Features
With integrated circuit design, the DBJ-1Z ensures reliable operation with strong anti-interference capability. Its 120dB loudness guarantees effective alert transmission even in noisy environments. The high-intensity LED strobe light provides long-distance visibility and outstanding warning effect. The alarm offers multiple tone options and pre-recorded voice messages including "Caution, equipment starting" and "Warning, train approaching", with customization available for specific requirements. The IP56-rated enclosure effectively resists dust and moisture ingress, making it suitable for long-term use in harsh conditions.714
Applications
This product is widely used in steel metallurgy, port terminals, lifting machinery, engineering vehicles and other industrial fields, particularly suitable for overhead cranes, coke pushers, railway crossings and other safety-critical locations. It performs exceptionally well in special environments like ships, mines, and petrochemical plants, effectively alerting workers to potential hazards. The alarm also finds applications in fire protection systems and perimeter security, providing reliable safety assurance for various workplaces.422
声光报警器DBJ-1Z
声光报警器DBJ-1Z
大型起重机械等行走设备在冶金企业中是非常重要的设备，它露天作业使用频繁、启动声音小、速度较快，容易因不被现场人员注意而发生**事故。我厂生产的TBJ-150一体化声光报警器，是针对大型起重机械的工作特点和结构特性而开发的专用报警器，具有许多专业化的特点。
产品特点：
·5W、25W报警音响——声音宏亮
·带不锈钢防护罩旋转警灯——高亮度、耐冲击
·防风雨电路工艺设计——防水、防尘、质量可靠
·警灯、警号一体化——安装简便
·交流220V触发即报警——操作简单
·可选择高亮度LED频闪灯——高质量、寿命长、高亮度
|
工作电压
AC220V、50Hz
|
警号功率
5W、25W
|
警灯直径
D=150mm
|
|
防护罩
不锈钢
|
触发信号
AC220V
|
壳体材料
钢板、喷涂
|
|
外形尺寸（高x长x宽）：435x180x155（mm）
|
声光报警器DBJ-1Z
