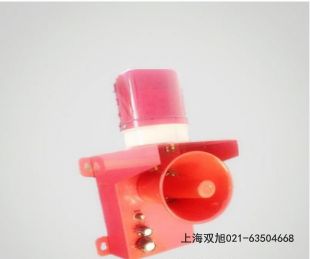

声光报警器BC-110
产品概述
BC-110声光报警器是一款专为工业环境设计的高效警示设备，采用铝合金外壳和集成电路核心，兼具声音与光信号双重报警功能。顶部配置大功率回转灯和扬声器，适用于起重机械、港口设备、矿山作业等大型工业场景的安全预警。产品支持多电压输入（AC24V-380V/DC24V-220V），具备防水防尘特性，可在船舶等潮湿环境中稳定工作。123
核心特点
该设备采用聚碳酸酯灯罩和铝合金压铸结构，透光性强且耐腐蚀，LED频闪灯可视距离远，配合106-120分贝的音频输出，能在嘈杂环境中有效传递警示信号。支持电铃声、消防声等多种音调定制，并可通过电位器调节音量。产品设计注重抗震性和安装便捷性，采用M6/M8螺丝固定，适应-30℃至+70℃的工作温度范围。51014
应用场景
BC-110广泛应用于天车、桥吊、输送带等起重运输设备，以及冶金、石油化工等行业的安全生产场景。其声光同步报警功能可提升作业区域的安全性，特别适合需要远距离警示的港口、隧道等场所。用户可根据实际需求选择红、黄、绿三种灯罩颜色，并定制语音提示内容。71719
Product Overview
The BC-110 audio-visual alarm is an industrial-grade warning device featuring an aluminum alloy housing and integrated circuit design. Equipped with a high-power rotary beacon and loudspeaker, it provides dual visual and audible alerts for safety monitoring in heavy-duty applications such as cranes, mining equipment, and port machinery. The unit supports wide voltage input (AC24V-380V/DC24V-220V) with IP56 protection for reliable operation in marine environments. 31222
Key Features
This alarm utilizes polycarbonate lens and die-cast aluminum construction for enhanced durability. Its LED strobe offers 180° visibility range while the 106-120dB siren ensures effective alert transmission in noisy conditions. Multiple tone options (including fire engine and police siren modes) are available with adjustable volume via potentiometer. The product features vibration resistance and easy installation with M6/M8 screws, operating reliably between -30℃ to +70℃. 81424
Applications
Ideal for material handling systems including overhead cranes and conveyor belts, the BC-110 is widely adopted in metallurgy, petrochemical and other industrial safety systems. Its synchronized light-sound warning significantly improves hazard awareness in large-area operations like ports and tunnels. Customizable with red/yellow/green lens options and pre-recorded voice messages to meet specific site requirements. 92027
声光报警器BC-110
声光报警器BC-110
大型起重机械等行走设备在冶金企业中是非常重要的设备，它露天作业使用频繁、启动声音小、速度较快，容易因不被现场人员注意而发生**事故。我厂生产的TBJ-150一体化声光报警器，是针对大型起重机械的工作特点和结构特性而开发的专用报警器，具有许多专业化的特点。
产品特点：
·5W、25W报警音响——声音宏亮
·带不锈钢防护罩旋转警灯——高亮度、耐冲击
·防风雨电路工艺设计——防水、防尘、质量可靠
·警灯、警号一体化——安装简便
·交流220V触发即报警——操作简单
·可选择高亮度LED频闪灯——高质量、寿命长、高亮度
|
工作电压
AC220V、50Hz
|
警号功率
5W、25W
|
警灯直径
D=150mm
|
|
防护罩
不锈钢
|
触发信号
AC220V
|
壳体材料
钢板、喷涂
|
|
外形尺寸（高x长x宽）：435x180x155（mm）
|
