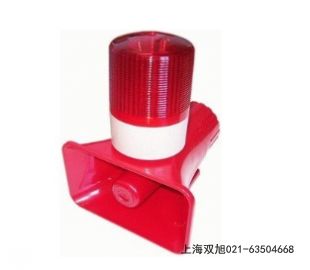

FMD-116A 声光报警器产品介绍（中英双语）
产品概述
FMD-116A是一款智能化声光警示设备，采用多频段组合告警设计，适用于工业厂房、仓储物流、公共建筑等多种场景的安全预警需求。设备集成高亮度LED光源与多频段音频模块，通过醒目的视觉警示与穿透性声波提示，有效提升环境安全感知度。
核心功能特点
- 复合警示模式：支持红蓝双色LED交替闪烁，搭配间歇性高频蜂鸣，可根据现场需求切换持续警示/脉冲警示两种工作模式
- 环境适应性设计：防护结构满足IP65防护等级要求，内置温度补偿电路，可在-25℃至+70℃环境下保持稳定运行
- 安装便捷性：提供壁挂、立柱两种安装方案，标准接口兼容主流控制系统，布线结构支持串联/并联灵活配置
- 能耗优化设计：采用低功耗电路方案，待机电流≤15mA，工作状态下声光同步激活时间可调（默认3分钟循环周期）
- 可视距离优化：配置6组高透光棱镜组成的光学系统，有效可视距离达150米（晴天环境）
典型应用场景
• 工业生产线异常停机预警
• 仓储区域装卸作业警示
• 地下停车场出入口提醒
• 电力设施安全隔离提示
• 机械设备启停状态指示
核心参数
工作电压：DC24V ±15%
音频输出：105dB @ 1米（标准模式）
光源强度：8000mcd（单色常亮模式）
外壳材质：阻燃PC复合材料
外形尺寸：φ180×125mm
重量：980g±5%
设计理念
本产品基于人机工程学原理，通过声光参数的精确匹配设计，在确保警示效果的前提下降低环境干扰。模块化结构设计便于后期维护，接口防护盖板采用防误触结构，避免现场操作中的意外损坏。
FMD-116A Audible & Visual Alarm Device Introduction
Product Overview
The FMD-116A is an intelligent alarm device featuring multi-frequency alert combinations, designed for safety warning requirements in industrial plants, logistics warehouses, public buildings and other environments. Integrating high-intensity LED modules with multi-band acoustic components, it delivers distinct visual signals and penetrating audible alerts to enhance situational safety awareness.
Key Features
- Dual Alert Modes: Red/blue LED alternating flash synchronized with intermittent high-frequency buzzer, offering continuous/pulse operation modes
- Environmental Durability: IP65-rated enclosure with temperature compensation circuit ensures stable performance from -25℃ to +70℃
- Flexible Installation: Wall-mounting and pole-mounting options with universal control interfaces, supporting series/parallel wiring configurations
- Energy Efficiency: Low-power circuit design with ≤15mA standby current, adjustable activation duration (default 3-minute cycle)
- Optical Optimization: 6-prism light diffusion system achieves 150m visibility range (clear weather conditions)
Typical Applications
• Production line emergency stop alerts
• Loading zone safety warnings
• Underground parking access notification
• Electrical facility isolation indication
• Machinery operation status display
Technical Specifications
Operating Voltage: DC24V ±15%
Sound Output: 105dB @1m (standard mode)
Luminous Intensity: 8000mcd (steady mode)
Housing Material: Flame-retardant PC composite
Dimensions: φ180×125mm
Weight: 980g±5%
Design Philosophy
Developed with ergonomic principles, this product optimizes audiovisual parameters to maximize warning effectiveness while minimizing environmental disturbance. Modular construction simplifies maintenance, with tamper-proof connector covers preventing accidental damage during field operations.
