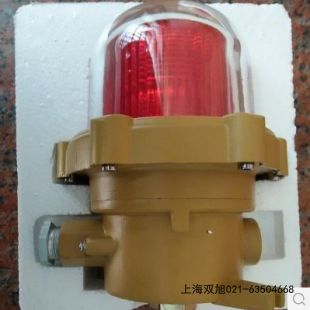

声光报警器TBJ-150-G
TBJ - 150 - G 声光报警器产品介绍
中文介绍
TBJ - 150 - G 型声光报警器是一款性能卓越、设计精良的安全警示设备。它采用了先进的电子技术，能够发出高分贝的警报声，声音清晰、穿透力强，即使在嘈杂的环境中也能迅速引起人们的注意。其配备的高亮度 LED 灯组，闪烁频率稳定，光线明亮且醒目，可实现 360 度全方位无死角的光报警效果，无论是白天还是夜晚，都能发挥出色的警示作用。
该报警器的外壳采用坚固耐用的工程塑料材质，具有良好的抗冲击性和耐腐蚀性，能够适应各种恶劣的工业环境和户外场所。其结构设计紧凑合理，安装方式灵活多样，可采用壁挂式、吸顶式等多种安装方式，方便用户根据实际场景进行选择。此外，它还具备良好的防水防尘性能，能够在潮湿、粉尘较多的环境中稳定运行，有效延长设备的使用寿命。
TBJ - 150 - G 声光报警器广泛应用于工厂车间、仓库、停车场、施工现场等场所，可用于火灾报警、设备故障提示、人员疏散引导等多种安全警示场景。其可靠稳定的性能和出色的警示效果，为各类场所的安全管理提供了有力保障，是维护人员生命财产安全的得力助手。
English Introduction
The TBJ - 150 - G Audible and Visual Alarm is an outstanding safety alert device with excellent performance and refined design. It employs advanced electronic technology to produce high - decibel alarm sounds that are clear and highly penetrating, capable of quickly grabbing people s attention even in noisy environments. The alarm is equipped with a high - brightness LED light array that flashes at a stable frequency, emitting bright and eye - catching light. It can achieve a 360 - degree all - around light alarm effect, performing superbly in both day and night scenarios.
The alarm s housing is made of sturdy and durable engineering plastic, which has good impact resistance and corrosion resistance, allowing it to adapt to various harsh industrial and outdoor environments. Its compact and rational structural design, combined with versatile installation options such as wall - mounted and ceiling - mounted styles, makes it easy for users to choose according to the actual situation. Moreover, it has good water - and dust - proof performance, ensuring stable operation in damp and dusty environments and effectively extending the service life of the equipment.
The TBJ - 150 - G Audible and Visual Alarm is widely used in factory workshops, warehouses, parking lots, construction sites and other places. It can be applied in various safety alert scenarios such as fire alarms, equipment failure prompts and personnel evacuation guidance. Its reliable and stable performance, along with its excellent alert effect, provides strong support for safety management in various places and is a valuable assistant in safeguarding people s lives and property.
声光报警器TBJ-150-G声光报警器TBJ-150-G
产品简介：
大型起重机械等行走设备在冶金企业中是非常重要的设备，它露天作业使用频繁、启动声音小、速度较快，容易因不被现场人员注意而发生**事故。我厂生产的TBJ-150一体化声光报警器，是针对大型起重机械的工作特点和结构特性而开发的专用报警器，具有许多专业化的特点。
产品特点：
·5W、25W报警音响——声音宏亮
·带不锈钢防护罩旋转警灯——高亮度、耐冲击
·防风雨电路工艺设计——防水、防尘、质量可靠
·警灯、警号一体化——安装简便
·交流220V触发即报警——操作简单
·可选择高亮度LED频闪灯——高质量、寿命长、高亮度
技术参数：
TBJ-150-G
|
工作电压
AC220V、50Hz
|
警号功率
5W、25W
|
警灯直径
D=150mm
|
|
防护罩
不锈钢
|
触发信号
AC220V
|
壳体材料
钢板、喷涂
|
|
外形尺寸（高x长x宽）：435x180x155（mm）
|
TBJ-150-G
|
工作电压
AC220V、50Hz
|
警号功率
5W、25W
|
警灯直径
D=150mm
|
|
防护罩
不锈钢
|
触发信号
AC220V
|
壳体材料
钢板、喷涂
|
|
外形尺寸（高x长x宽）：435x180x155（mm）
|
