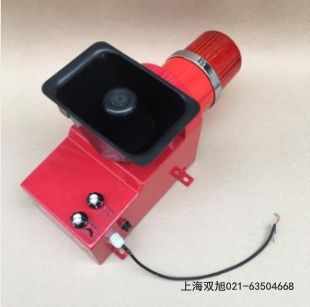

声光报警器SL-100产品介绍（中英文）
【中文版】
SL-100声光报警器是一款适用于工业安全与公共预警场景的多功能警示装置，采用一体化设计理念，结合高亮度光源与穿透性声频技术，为复杂环境提供直观高效的警示信号。设备内置智能控制模块，可兼容多种触发信号输入方式，满足不同场景的联动需求。
核心功能亮点：
-
复合警示模式：采用红蓝双色LED光源与105分贝高频蜂鸣器组合，实现360°可视光效与穿透性声波覆盖，确保在雨雾、噪音等干扰环境下仍能清晰传递警示信息。光效模式支持爆闪/常亮切换，声频可调节脉冲频率以适应不同距离需求。
-
环境适应能力：壳体采用工程级复合材料，具备IP66防护等级，可在-30℃至70℃温度范围内稳定运行。防震结构设计通过2000小时盐雾测试与1.5米跌落试验，适用于化工厂、港口机械、地下停车场等严苛环境。
-
智能能耗管理：搭载自适应功率调节系统，待机功耗低于0.5W，触发工作时自动切换至全功率模式。支持DC12-24V宽电压输入，内置反接保护与过载保护电路，有效延长设备使用寿命。
-
便捷安装维护：提供壁挂、支架两种固定方式，配备快拆式透明防护罩，便于日常清洁与部件更换。接线端子采用防误插设计，支持导线截面积0.5-2.5mm²的接入需求。
典型应用场景：
适用于物流仓储中心的叉车作业区警示、智能楼宇的消防疏散指引、变电站设备状态预警、隧道施工安全警示等需要可靠声光提示的场所。通过标准信号接口可与PLC控制系统、物联网管理平台实现无缝对接，构建智能化安全防护网络。
技术参数：
工作电压：DC12V/24V自适应
声压等级：105dB@1米
光强参数：≥200cd（红光）/≥180cd（蓝光）
防护等级：IP66
工作温度：-30℃～+70℃
外壳材质：阻燃PC+铝合金基座
外形尺寸：φ150×98mm
【English Version】
The SL-100 Visual-Audible Alarm is an integrated warning device designed for industrial safety and public alert scenarios. Featuring synchronized luminous and acoustic warning systems, it delivers clear警示signals through high-intensity visual cues and penetrating audible alerts, ensuring effective communication in challenging environments.
Key Features:
-
Dual Warning Modes: Equipped with red/blue dual-color LED arrays and 105dB buzzer, providing 360° visible flashing (strobe/steady modes) with adjustable pulse frequency. The sound wave propagation pattern ensures effective coverage in noisy environments up to 30-meter radius.
-
Robust Construction: Engineered with impact-resistant polycarbonate housing (IP66 rated) maintaining stable operation from -30℃ to 70℃. Vibration-damped structure passed 2000-hour salt spray test and 1.5m drop test, suitable for harsh conditions including chemical plants and offshore platforms.
-
Adaptive Power Management: Automatic power adjustment system reduces standby consumption to <0.5W. Compatible with 12-24VDC power supply, incorporating reverse polarity protection and overload prevention circuits for enhanced durability.
-
Flexible Installation: Supports wall-mounting or bracket fixation with tool-free transparent cover removal for maintenance. Color-coded terminal blocks accept 0.5-2.5mm² conductors, featuring foolproof connector design.
Application Fields:
Ideal for material handling vehicle alerts in logistics centers, emergency evacuation guidance in smart buildings, equipment status warnings in power facilities, and construction zone safety notifications. Standard signal interfaces enable seamless integration with PLC systems and IoT platforms for automated safety networks.
Technical Specifications:
Supply Voltage: DC12V/24V auto-sensing
Sound Pressure: 105dB@1m
Luminous Intensity: ≥200cd (Red)/≥180cd (Blue)
Ingress Protection: IP66
Operating Temperature: -30℃～+70℃
Housing Material: Flame-retardant PC + Aluminum base
Dimensions: φ150×98mm
